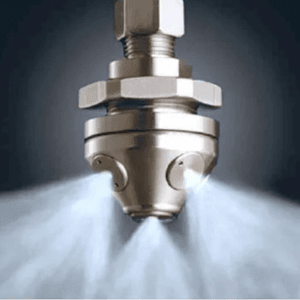

Multi directional wide angle Air Atomizing Nozzle
Air Atomizing Nozzle

Multi directional wide angle Air Atomizing Nozzle

A multi-directional air atomizing nozzle with a 120° spray angle is a specialized nozzle designed for fine mist generation in a wide conical spray pattern, offering efficient coverage over a broad area.

Spray pattern
Wide-angle mist cone (see illustration)
Specifications
Model-specific; confirmed with your quotation

Quotation-led supply. Product suitability and commercial terms are confirmed during quotation.

Wide-angle mist cone spray pattern, schematic illustrationFine droplets leave in a wide cone, giving broad, round coverage close to the nozzle.SIDE VIEWCOVERAGE ON TARGETLIQUID INWIDE CONE OFFINE DROPLETSTARGET SURFACEBROAD ROUND MIST COVERAGESCHEMATIC ILLUSTRATION · NOT PERFORMANCE DATA
Spray pattern & coverage

How this nozzle sprays.

Wide-angle mist cone

Fine droplets leave in a wide cone, giving broad, round coverage close to the nozzle.

Schematic illustration of the spray geometry, not a performance simulation. Spray angle, flow and droplet size depend on the model and operating conditions and are confirmed with your quotation.

Product information

A multi-directional air atomizing nozzle with a 120° spray angle is a specialized nozzle designed for fine mist generation in a wide conical spray pattern, offering efficient coverage over a broad area.

Key Features:

  • Air Atomizing Technology: Uses compressed air and liquid simultaneously to generate a fine mist or fog.

  • 120° Spray Angle: Produces a wide cone spray, suitable for covering large surface areas.

  • Multi-Directional Design: Equipped with multiple spray heads or adjustable ports, enabling uniform mist distribution in various directions.

  • Precise Droplet Control: Allows control over droplet size, typically in the range of 10–50 microns depending on pressure and fluid viscosity.

  • Low Flow Rate Options: Ideal for applications requiring minimal water usage with high coverage.

Properties:

  1. External Mixing: Liquid and air meet outside the nozzle, ensuring no internal mixing or clogging, especially when working with viscous or particle-laden liquids.
  2. Precise Control: Separate control over air and liquid flow rates allows for fine adjustments to droplet size and spray pattern.
  3. Customizable Spray Patterns: Available in multiple patterns, such as flat fan, round, or full cone, depending on application needs.
  4. Low Operating Pressure: Functions efficiently at relatively low liquid and air pressures.



Common Applications:

  • Dust Suppression in crushers, conveyors, and coal yards

  • Odor Control in waste treatment plants and landfills

  • Cooling in outdoor areas, greenhouses, or animal shelters

  • Humidification in textile, paper, and printing industries

  • Coating or Moistening in food and pharmaceutical production

Advantages:

  • Non-clogging design due to external mixing.
  • Flexibility in handling a wide range of fluids, including those with high viscosity or particulates.
  • Greater control over atomization, allowing for efficient use of liquids and air.

<h6style=”font-size: 18px;”>Typical Specification of Air Atomizing Spray Nozzle

Parameter Value
Spray Angle 120° wide cone
Operating Pressure (Air) 2–6 bar (30–90 psi)
Operating Pressure (Liquid) 1–4 bar (15–60 psi)
Droplet Size 10–50 microns
Material Options SS304, SS316, Brass, PTFE, etc.
Mounting Threaded, flanged, or magnetic base
Inlet Size 1/4”



Request a quote for this product

Your enquiry will mention Multi directional wide angle Air Atomizing Nozzle. Add the application, liquid, pressure, flow, connection and quantity if you know them.
