Gas Cooling Nozzles – Precision Cooling for Industrial Applications

Gas cooling nozzles are essential in industrial processes where hot gas flows need to be cooled efficiently using water or other coolants. The right nozzle selection is crucial, as the spray properties determine how effectively heat is absorbed and distributed within the gas stream.

Our high-performance nozzles ensure efficient cooling with minimal water consumption, helping industries comply with environmental regulations while optimizing process efficiency.

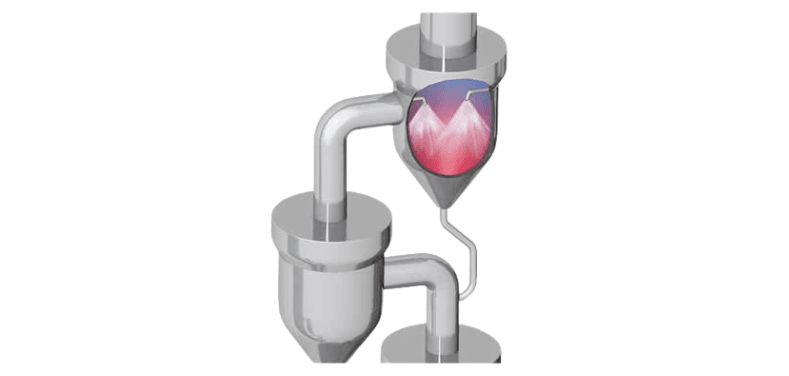

How Gas Cooling Nozzles Work

Gas cooling nozzles operate by injecting finely atomized coolant into hot gas streams. The cooling occurs primarily through evaporation, where the heat from the gas absorbs and evaporates the liquid, effectively reducing gas temperatures.
✔ Fast Heat Absorption – Small droplets ensure rapid evaporation and uniform cooling.
✔ Optimized Spray Distribution – Ensures effective interaction between gas and liquid.
✔ Energy & Water Efficient – Uses precise liquid dosing to minimize waste.
✔ Corrosion-Resistant Materials – Designed to withstand high-temperature gas flows.

Nozzle Selection for Gas Cooling

The choice of gas cooling nozzle depends on several critical factors:

Droplet Size & Evaporation Rate

✔ Smaller Droplets → Evaporate quickly, ensuring rapid cooling.
✔ Larger Droplets → Provide better penetration into the gas stream, preventing localized cooling.
✔ Balanced Spray Distribution → A mix of small and large droplets ensures effective cooling without over-saturating the gas.

Penetration & Distribution in Gas Streams

✔ Too fine a spray → May cool only a small portion of the gas flow, leading to ineffective cooling.
✔ Too large a droplet size → May take too long to evaporate, requiring longer cooling chambers.
✔ Ideal balance → A mix of fine mist and larger droplets to ensure uniform gas cooling.

Managing Variable Gas Flows

In many industrial applications, the amount of gas to be cooled varies depending on process conditions. If gas flow decreases, reducing coolant flow can increase droplet size, leading to longer evaporation times and inefficient cooling.
✔ Spillback Nozzle Systems – Maintain consistent droplet size even with fluctuating pressure and flow rates.
✔ Air Atomizing Nozzles – Adjust liquid and air pressure to control droplet size and distribution.
✔ Multi-Nozzle Arrays – Optimize spray coverage for varying gas loads.

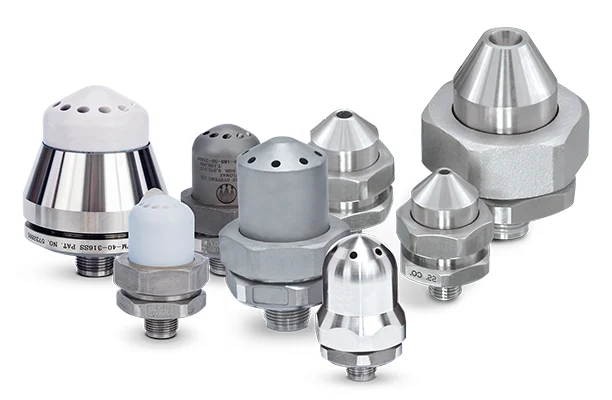

Types of Gas Cooling Nozzles

TF Spiral Nozzles – For General Gas Cooling

Creates a balanced mix of fine droplets and larger drops.
Provides deep penetration into fast-moving gas streams.
Ideal for general cooling applications and gas treatment systems.

Spillback Nozzle Systems – For Variable Gas Flows

Maintains consistent droplet size even when pressure and flow rates fluctuate.
Provides efficient cooling under changing process conditions.
Best for scrubber pre-cooling and exhaust gas cooling.

Spiral Air (SA) Nozzles – For High-Temperature Gas Cooling

Uses compressed air for superior atomization.
Produces extremely fine droplets for rapid evaporation.
Ideal for hot gas flows requiring quick cooling before emission control systems.

Hydraulic Atomizing Nozzles – For Large-Scale Cooling

High liquid pressure ensures fine mist cooling.
Suitable for high-temperature furnaces and flue gas conditioning.
Works well in high-volume gas treatment plants.

Twin-Fluid Nozzles – For Maximum Cooling Efficiency

Adjustable air and liquid pressure for custom droplet sizes.
Provides high cooling efficiency in industrial furnaces.
Perfect for gas treatment in chemical plants and steel mills.

Applications of Gas Cooling Nozzles

Flue Gas Cooling in Power Plants & Cement Industries

🔹 Reduces flue gas temperatures to meet emission control requirements.
🔹 Enhances efficiency of dust collectors and scrubbers.
🔹 Helps in SOx and NOx reduction for cleaner emissions.

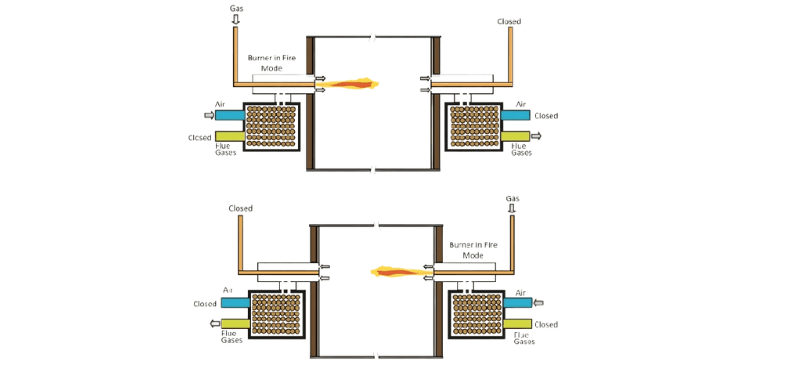

Gas Conditioning in Industrial Furnaces

🔹 Maintains optimal gas temperature for efficient process control.
🔹 Prevents overheating and equipment damage.
🔹 Improves fuel combustion and heat recovery.

Evaporative Cooling in Steel & Metal Processing

🔹 Cools hot gases in blast furnaces and steel mills.
🔹 Enhances temperature uniformity in metal treatment processes.
🔹 Supports controlled cooling of exhaust gases.

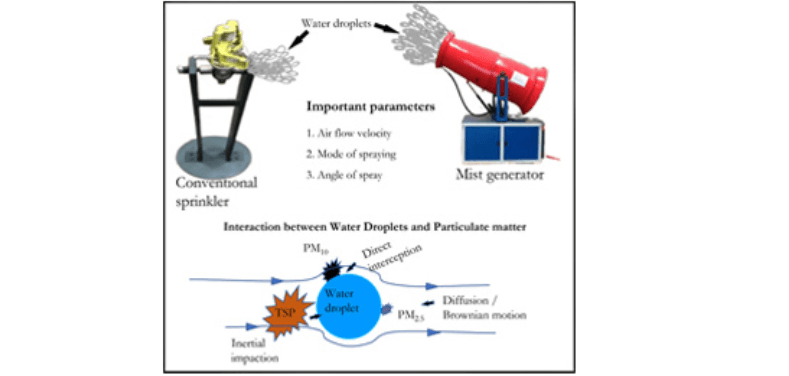

Dust Suppression in Gas Streams

🔹 Reduces dust and particulate emissions in industrial chimneys.
🔹 Enhances air quality by binding airborne particles.
🔹 Helps comply with environmental safety standards.

Benefits of Using Our Gas Cooling Nozzles

✔ Precise Temperature Control – Ensures uniform cooling and prevents overheating.
✔ Energy & Water Efficient – Reduces operational costs by minimizing liquid consumption.
✔ Long-Lasting Performance – Made from high-grade materials for corrosion and heat resistance.
✔ Custom Nozzle Designs – Tailored for specific gas cooling applications.
✔ Compliant with Environmental Standards – Helps industries meet air quality regulations.

Why Choose Us?

FAQ

What is gas cooling, and why is it important?

Gas cooling is a process used to lower the temperature of hot gases in industrial applications by injecting finely atomized water or coolants into the gas stream. It helps prevent overheating, improve efficiency, and comply with environmental regulations in industries like cement, steel, and power plants.

How do gas cooling nozzles work?

Gas cooling nozzles spray fine mist droplets into hot gases. These droplets absorb heat and evaporate, effectively reducing the gas temperature. The choice of nozzle determines how efficiently heat is transferred and how well the gas is cooled.

What are the most common issues with the gas cooling process?

Some common problems include:
🔹 Uneven cooling – Due to poor nozzle placement or incorrect droplet size.
🔹 Slow evaporation – If droplet size is too large, leading to inefficient cooling.
🔹 Excess water consumption – Caused by incorrect spray settings or overuse of cooling liquid.
🔹 Nozzle clogging – Due to mineral deposits or dust in the system.
🔹 Overcooling & condensation – Can lead to corrosion and process inefficiencies.

What types of gas cooling nozzles are available?

We offer a variety of nozzles based on cooling requirements:
✔ Air Atomizing Nozzles – Provide fine mist sprays for rapid evaporation.
✔ Hydraulic Atomizing Nozzles – Use high-pressure liquid for gas cooling.
✔ Spillback Nozzles – Maintain consistent droplet size under variable flow conditions.
✔ Twin-Fluid Nozzles – Utilize both air and liquid for superior cooling efficiency.

How do I choose the right gas cooling nozzle?

The right nozzle depends on:
🔹 Desired droplet size – Smaller droplets evaporate faster, while larger ones ensure deeper penetration.
🔹 Gas temperature & flow rate – Determines spray volume and nozzle type.
🔹 Application type – Whether for flue gas cooling, evaporative cooling, or dust suppression.

What happens if gas cooling is uneven?

Uneven cooling can cause hot spots in ducts and gas streams, leading to incomplete temperature reduction and inefficient emissions control. Using optimized spray nozzles and proper nozzle placement helps ensure uniform cooling.

How does nozzle clogging affect gas cooling?

Clogged nozzles can lead to:
🔹 Reduced spray efficiency – Poor cooling performance.
🔹 Increased maintenance costs – Frequent cleaning and replacement.
🔹 Inconsistent temperature control – Leading to process inefficiencies.
To prevent clogging, we offer self-cleaning, clog-resistant nozzles made from corrosion-resistant materials.

What is the best way to reduce water consumption in gas cooling?

✔ Use air atomizing nozzles – Create finer mist sprays for faster evaporation.
✔ Optimize nozzle selection – Prevents excess liquid use.
✔ Adjust spray patterns and pressures – Ensures just enough coolant is used for effective cooling.

How do variable gas flows impact gas cooling efficiency?

When gas flow changes, the cooling requirement varies. This can cause:
🔹 Inefficient cooling if too little liquid is used.
🔹 Overcooling & condensation if too much liquid is sprayed.
Solution: Use spillback or twin-fluid nozzles that adjust spray output automatically based on gas flow conditions.

Where can I buy high-performance gas cooling nozzles?

We supply industrial-grade gas cooling nozzles across India and worldwide. Contact us for:
✔ Custom nozzle recommendations
✔ Expert consultation on gas cooling solutions
✔ High-efficiency nozzles for your specific applications
