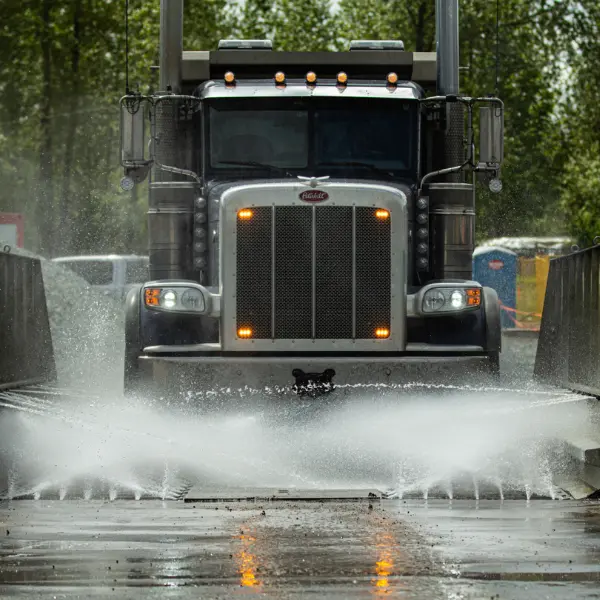

Truck Wheel and Body Washing System – Complete Cleaning for Heavy-Duty Vehicles

Our automated Truck Wheel Wash System is engineered to deliver high-performance cleaning while
helping you comply with CPCB and NGT norms for construction, mining, or industrial use.

What Is a Truck Wheel and Body Washing System?

A truck washer not only cleans the wheels and undercarriage but also provides full body
washing including side panels and rear chassis—for complete vehicle hygiene before hitting public
roads.

Features of Our Lorry Washing Machine

360° high-pressure spray jets for comprehensive cleaning

Sensor-based automatic start or manual override

Eco-friendly water recycling unit with multi-stage filtration

Heavy-duty grating platform supports trucks up to 100 tons

Fast wash cycles ranging from 30–90 seconds

Smart PLC control panel for efficiency and diagnostics

Truck Washing System Configuration

ComponentSystem Configuration
NozzlesSS316 anti-clog jets (mist or directional)
Pump UnitHigh-pressure centrifugal or plunger-based
Water Tank5,000–10,000 liters, with sedimentation and skimming
Grating PlatformMS or SS frame with anti-slip coating
Control PanelPLC-based control with timer/manual/auto modes
SensorsInfrared or inductive proximity sensing

Component	System Configuration
Nozzles	SS316 anti-clog jets (mist or directional)
Pump Unit	High-pressure centrifugal or plunger-based
Water Tank	5,000–10,000 liters, with sedimentation and skimming
Grating Platform	MS or SS frame with anti-slip coating
Control Panel	PLC-based control with timer/manual/auto modes
Sensors	Infrared or inductive proximity sensing

Types of truck washer

Wheel-Only Washing System

A system specifically designed to wash only the wheels and undercarriage of vehicles using high-pressure water jets.

Truck Wheel Washing System +Full Body

An advanced solution that cleans wheels, undercarriage, and the side body panels of trucks using a combination of horizontal and vertical spray nozzles. Ideal for cement plants, landfills, and mining
truck wash zones.

Drive-Through System

A fully automated configuration that allows vehicles to continue driving at slow speed while being washed, without needing to stop.

Portable Wash System

A mobile, plug-and-play unit mounted on a skid or trailer that can be transported and installed at temporary or multi-site operations.

Technical Specifications of Truck Tyre Wash System (Typical Range)

ParameterSpecification
Wash Duration30–90 seconds
Pump Pressure4–6 bar
Water Flow Rate250–450 LPM
Supported Truck SizeUp to 12 meters / 40 feet
Load CapacityUp to 100 Tons
Operation ModesManual / Sensor / Auto

Parameter	Specification
Wash Duration	30–90 seconds
Pump Pressure	4–6 bar
Water Flow Rate	250–450 LPM
Supported Truck Size	Up to 12 meters / 40 feet
Load Capacity	Up to 100 Tons
Operation Modes	Manual / Sensor / Auto

Applications of Truck Wheel and Washing System

Construction Sites

Prevents wet soil, debris, and concrete from being carried onto public roads.

Mining and quarrying areas

Removes ore dust and red mud from dumpers before they rejoin highways.

Ready-mix concrete plants

Cleans residual cement from mixers to prevent buildup and road staining.

Logistics Yards & Container Terminals

Maintains clean, branded fleets and ensures visibility on delivery routes.

Waste management and landfills

Eliminates organic sludge and garbage residue from waste transport trucks.

Cement & Steel Plants

Clears chemical and fine dust from raw material and slag haulers.

Why Choose Our Truck Washing Systems?

10+ Years Industry Experience in truck and lorry washing solutions

CPCB & NGT Compliant Systems to meet pollution control norms

Custom-Built Units for mining, construction, logistics & RMC plants

Supports Heavy Trucks up to 100 tons load capacity

Water Recycling Technology saves up to 80% water per wash

Pan-India Installation & Support with trained engineers

Quick ROI with low maintenance and fast wash cycles

FAQs

Is it easy to maintain?

Yes, with features like automatic sludge discharge, filter backwash, and self-cleaning spray nozzles, routine maintenance is minimal and efficient.

How much water does the system use per truck?

A typical wash cycle uses 200–450 liters, most of which is recycled, so actual water consumption is minimal.

Does the wheel washing system recycle water?

Yes, most modern systems include multi-stage filtration units that recycle 70–80% of the water used per wash cycle.

Where should the washing system be installed?

Ideally at the exit point of your construction site, plant, or yard—so every outgoing truck passes through it before joining public roads.

Is a truck wheel wash system mandatory for construction sites?

Yes, in many states, CPCB and local pollution boards mandate wheel wash systems at large construction and mining sites to prevent road contamination.
