SPRAY NOZZLES FOR CLEANING

Cleaning alludes to any spray that is utilized to wash an item or machines. Cleaning is separated from the more expert tank washing application which is managed in its own application area
Synergy Spray Systems specialize in providing high-performance spray nozzles designed for a wide range of cleaning applications. Whether you are cleaning machinery, processing equipment, or production lines, our spray nozzles ensure efficient cleaning, minimal water usage, and consistent results. Our products are designed for various industries such as food processing, pharmaceuticals, and manufacturing to help achieve high sanitation standards while maintaining operational efficiency.

Spray Bar Arrangements for Effective Cleaning

Spray bars are an essential part of many cleaning systems, ensuring uniform coverage across large surfaces or equipment. By optimizing the spray bar design and selecting the appropriate spray nozzles, we ensure effective cleaning while minimizing water and chemical usage.

Key Features of Spray Bar Arrangements:

   • Even Distribution – Ensures uniform spray coverage across surfaces for thorough cleaning.
   • Versatility – Can be used in conveyor cleaning, tank cleaning, wash-down applications, and industrial cleaning.
   • Adjustable Spray Angles – Allows flexibility in directing spray for different surfaces and cleaning needs.
   • Efficient Water Use – Reduces water consumption while still delivering effective cleaning results.
Spray Bar Arrangements for Effective Cleaning

Spray Bar Arrangements for Different Residue Levels

The effectiveness of cleaning is influenced by the amount of residue present on surfaces. Spray bars can be configured to provide varying flow rates and spray patterns to address light, medium, and heavy residues. Here’s a breakdown of spray requirements for different residue levels:

Light Residue (0.5 - 2 L/m²)

For light residue cleaning, such as dust or light dirt accumulation, spray bars with lower flow rates are typically used. This ensures that a controlled amount of liquid is applied to the surface, maximizing cleaning efficiency while minimizing waste.
    • Nozzle Type: Fine mist nozzles or low-flow flat fan nozzles.
    • Flow Rate: 0.5-2 L/m² for controlled spraying.
    • Application: Ideal for general cleaning and dusting in food processing lines, equipment maintenance, and light-duty industrial cleaning.

Medium Residue (2 - 5 L/m²)

When dealing with medium residue, such as grease, oil, or moderate build-up, spray bars need to provide a moderate flow rate to ensure proper wetting and removal of contaminants.
    • Nozzle Type: Medium-flow full cone nozzles or rotary nozzles.
    • Flow Rate: 2-5 L/m² for thorough coverage.
    • Application: Used in food production lines, chemical plants, and manufacturing facilities where moderate build-up occurs and effective cleaning is needed.

Tough Residue (Over 5 L/m²)

For heavy-duty cleaning applications, where tough residues like baked-on grease, resins, or industrial debris are present, spray bars must deliver a high flow rate to effectively remove the thick contaminants.
    • Nozzle Type: High-flow full cone nozzles or high-pressure nozzles.
    • Flow Rate: Over 5 L/m² for intense cleaning action.
    • Application: Perfect for industrial tank cleaning, high-pressure washdowns, and areas with substantial oil or resin deposits.

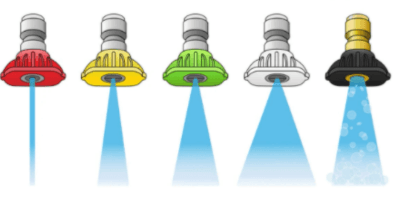

Types of Nozzles for Cleaning Applications

We offer a variety of spray nozzles to suit your cleaning needs, ensuring optimal coverage, pressure, and flow.

Flat Fan Nozzles

• Ideal for: Wide-area coverage, cleaning conveyor belts, and flat surfaces.
• Benefits:
             ✔ Uniform spray pattern ensures even cleaning across the surface.
             ✔ Perfect for high-pressure washdowns of large equipment and surfaces.

Solid Stream Nozzles

• Ideal for: Heavy-duty cleaning, where high impact is needed.
• Benefits:
             ✔ Highest impact spray, focused on tough residues.
             ✔ Perfect for industrial tank cleaning and removal of hard-to-remove contaminants.

Spray Requirements for Cleaning

Understanding spray requirements is crucial for optimizing cleaning performance and ensuring that the right spray pattern, flow rate, and pressure are used for eac application. The efficiency of the cleaning process depends on the proper selection of nozzles and spray system configurations.

Key Spray Requirements for Cleaning:

   • Spray Pressure: Ensures effective dirt removal and the ability to clean tough residues.
   • Flow Rate: The right flow rate ensures the consistent delivery of cleaning agents without wasting resources.
   • Spray Angle: Wide spray angles are suitable for large-area coverage, while narrow spray angles are ideal for focused cleaning.
   • Droplet Size: The right droplet size ensures that cleaning agents or water are properly applied to surfaces for effective cleaning. For delicate equipment, fine mist sprays are used; for heavy-duty applications, larger droplets may be more effective.
Spray Requirements for Cleaning

Dust Emission Control

How to Determine Spray Requirements:

1. Surface Area to be Cleaned – Adjust the spray pattern and nozzle placement to cover the area efficiently.
2. Type of Contaminant – For stubborn residues, a higher pressure nozzle with a narrow spray may be required.
3. Cleaning Time – Faster cycles may require high flow rate nozzles for quick coverage.

Designing Consideration 1 – Which Level of Cleaning is Required?

When choosing the right spray arrangement, the first question to ask is what level of cleaning needs to be achieved. Cleaning can generally be categorized into different levels depending on the desired outcome:
Sanitizing

Sanitizing

The removal of buildup through washing or flushing, followed by the application of chemicals or heat that kills all life.

    • Application: Food processing, medical equipment, and pharmaceutical cleaning.

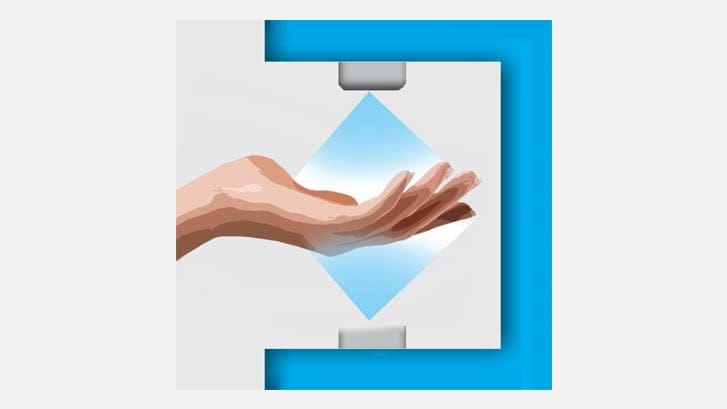

Disinfecting

Disinfecting

The removal of buildup by washing or flushing, followed by the use of chemicals or heat that kills 100% of bacteria but not necessarily spores.

    • Application: Food production, cleanroom environments, and cleaning of sensitive equipment.

Decontaminating

The removal of buildup (via washing or flushing) and the addition of a disinfecting substance that kills or eliminates contaminants or microorganisms to an acceptable level.

    • Application: Industrial tanks, manufacturing facilities, and chemical processing plants.
Washing

Washing

The removal of buildup by dissolving in a cleaning liquid and applying direct pressure.

    • Application: General equipment cleaning, machinery, and conveyor systems.
Once the level of cleaning is determined, you can consider the impact, volume, and spray duration required to achieve this level.

Designing Consideration 2 – Spray Impact

To achieve any of the cleaning levels mentioned above, there are three fundamental cleaning processes that correspond to different spray impacts. These processes require different nozzle types, as the properties of the spray required vary:

Rinse Applications (Low Impact, High Coverage)

    • Spray Design: A low impact, high coverage spray that delivers washing liquid over a large area.
    • Nozzle Type: Full cone nozzles are ideal for rinsing applications since they disperse liquid across a broad area, without depending on the active energy of the liquid to remove buildup.
    • Application: Ideal for washing machinery, conveyor belts, and equipment that requires large-area rinsing.

Wash Applications (Medium Impact, Medium Coverage)

    • Spray Design: Medium impact spray that helps in removing buildup through the force of the spray. The liquid is dispersed over a wide area to ensure even cleaning, but it uses the energy of the spray to enhance the cleaning action.
    • Nozzle Type: Flat fan nozzles are best for wash applications, as they disperse liquid more evenly than full cone nozzles.
    • Application: Used for cleaning equipment, processing lines, and food processing machinery.

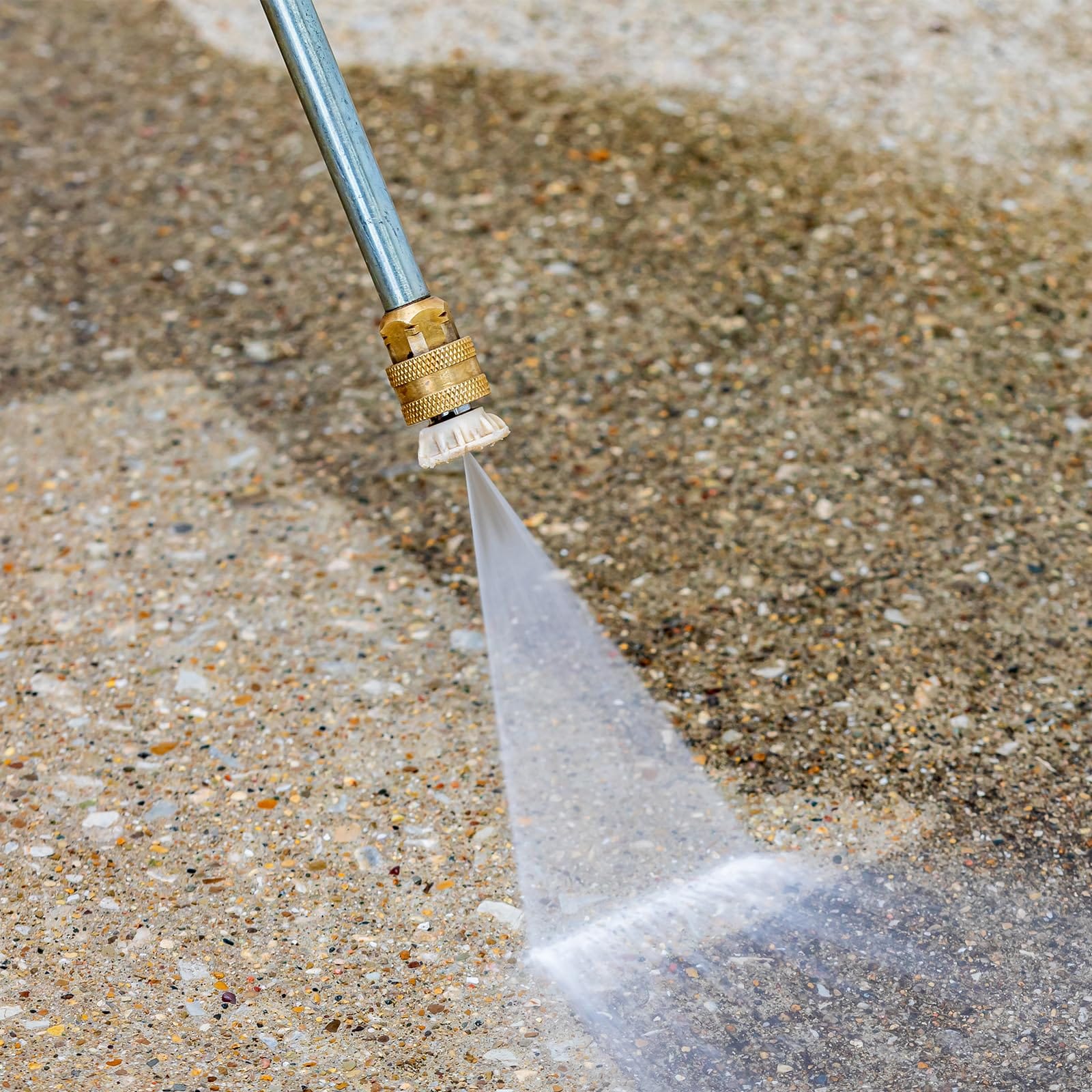

High Impact Wash

High Impact Wash (High Impact, Focused Coverage)

    • Spray Design: High impact, concentrated spray that targets stubborn buildup. The high energy of the spray is necessary to break down and remove tough residues.
    • Nozzle Type: Solid stream nozzles or high-pressure nozzles are most suitable for high-impact cleaning.
    • Application: Best suited for industrial tank cleaning, removal of oil or grease, and heavy-duty cleaning in manufacturing facilities.

Designing Consideration 3 – Coverage

For high-impact cleaning, solid stream nozzles or flat fan nozzles will be most appropriate. However, these nozzles have a limited area of coverage, and relative movement is required to ensure that the entire surface is cleaned.

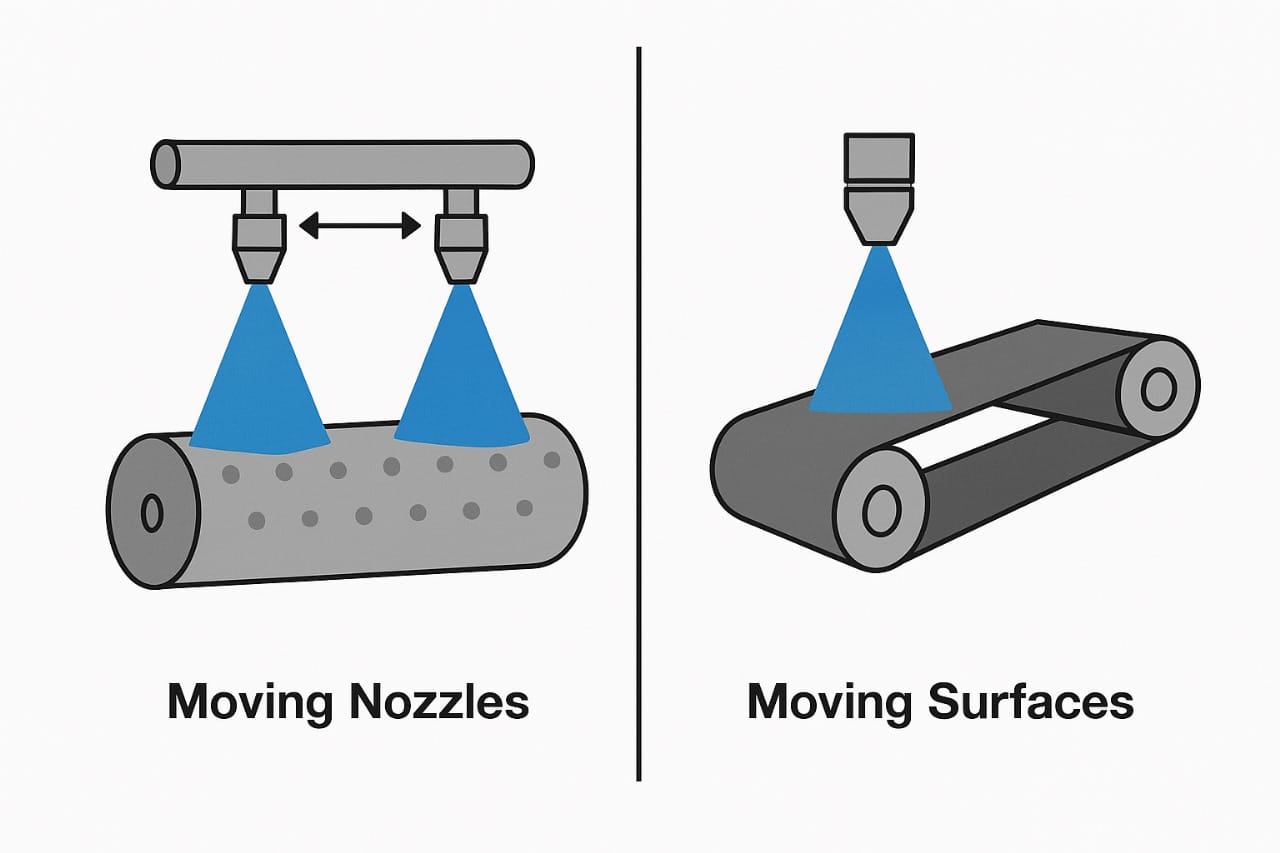

Movement for Coverage

Movement for Coverage

    • Moving Nozzles: Some cleaning applications require nozzles to move across the surface to ensure full coverage.
    • Moving Surfaces: In some cases, the surface being cleaned (such as conveyor belts) can move, ensuring that the spray reachesall areas.
The movement could be conveyed by a transport system or a moving spray bar, ensuring that the spray pattern reaches the entire target area.

Our spray nozzles are versatile, catering to various cleaning needs across multiple industries.

SynergySpray Self-Clean Spray Nozzle
Spray Angle
@ 2.8 Bar		Orifice Diameter
(mm)		Capacity (L/min)
1.5 Bar2 Bar2.5 Bar3 Bar3.5 Bar4 Bar4.5 Bar5 Bar4.5Bar6 Bar7 Bar8 Bar10 Bar15 Bar
0°000120.0340.0390.0430.0470.0510.0550.0580.0610.0640.0670.0720.0770.0860.11
0000260.0730.0840.0940.100.110.120.1250.130.140.150.160.170.190.23
0000530.150.170.190.210.230.240.260.270.280.300.320.340.380.47
000070.200.230.250.280.300.320.340.360.370.390.420.450.500.62
00010.280.320.360.390.430.460.480.510.530.560.600.640.720.88
000170.470.550.610.670.720.770.820.870.910.951.001.101.201.50
00020.560.640.720.790.850.910.971.001.071.101.201.301.401.80
000250.700.810.900.991.01.11.21.31.341.41.51.61.82.2
000320.891.01.21.31.41.51.551.61.71.81.92.12.32.8
000431.21.41.51.71.82.02.12.22.32.42.62.83.13.8
00051.41.61.82.02.12.32.42.52.72.83.03.23.64.4
00061.71.92.22.42.62.72.93.13.23.33.63.94.35.3
00082.22.62.93.23.43.63.94.14.34.54.85.25.87.1
00102.83.23.63.94.34.64.85.15.35.66.06.47.28.8
15° 15061.71.92.22.42.62.72.93.13.23.33.63.94.35.3
30°30051.41.61.82.02.12.32.42.52.72.83.03.23.64.4
30133.64.24.75.15.55.96.26.66.97.37.88.49.411.5
30143.94.55.05.56.06.46.88.17.57.88.49.010.112.4
304011.212.914.1415.817.118.219.320212224262935
40°40123.33.94.34.75.15.55.86.16.46.77.27.78.610.6
10133.64.24.75.15.55.96.36.66.97.37.88.49.411.5
40143.94.55.05.56.06.46.87.17.57.88.49.010.112.4
40205.66.47.27.98.59.19.710.210.711.212.112.914.417.7
40328.910.311.512.613.614.615.516.317.117.919.3212328
404512.614.516.217.819.2212223242227293240
45°45164.55.25.86.36.87.37.78.28.68.99.610.311.514.1
45257.08.19.09.910.711.412.112.713.414.015.116.11822
454211.713.515.116.617.919.12021222325273037
50°50328.910.311.512.613.614.615.516.317.117.919.3212328
60°60164.55.25.86.36.87.37.78.28.68.99.610.311.514.1
60318.710.011.212.213.214.115.015.816.617.318.716.12227
603810.612.213.71516.217.318.419.4202123272734
80°80030.840.971.11.21.31.41.451.51.61.71.81.92.22.6
80031.41.61.82.02.12.32.42.52.72.83.03.23.64.4
80113.13.54.04.34.75.05.35.65.96.16.67.17.99.7
80195.36.16.87.58.18.79.29.710.210.611.512.213.716.8
80308.49.710.811.812.813.714.515.316.016.718.119.32226
803610.011.613.014.215.316.417.418.319.22022232632
804612.814.816.618.219.6212223252628303341
100°100113.13.54.04.34.75.05.35.65.96.16.67.17.99.7
100205.66.47.27.98.59.19.710.210.711.212.112.914.417.7
120°120082.22.62.93.23.43.63.94.14.34.54.85.25.87.1
130°130164.55.25.86.36.87.37.78.28.68.99.610.311.514.1

Applications of Spray Nozzles in Cleaning

Food Processing Industry

In the food processing industry, sanitation is essential. Our high-pressure washdown nozzles are perfect for cleaning processing equipment, stainless steel surfaces, and conveyor belts, ensuring there is no contamination risk during food production.

Pharmaceutical Cleaning

Pharmaceutical industries require cleanroom environments. Our fine atomizing nozzles provide gentle cleaning without the risk of damaging sensitive equipment or components.

Industrial Equipment Cleaning

Spray nozzles are ideal for cleaning machinery, conveyor belts, and production lines, helping to maintain hygiene standards and ensuring optimal equipment performance.

Manufacturing and Automotive

Our rotating nozzles provide consistent and reliable cleaning for machinery, storage tanks, and pipes used in manufacturing and automotive industries, reducing downtime and improving overall efficiency.

Benefits

Enhanced Cleaning Efficiency
Flexibility and Customization
Water and Chemical Savings
Consistent and Reliable Performance
Versatility Across Industries
Energy Efficiency.
Easy Maintenance
Environmentally Friendly
Reduced Labor Costs and Time

FAQs

Can spray nozzles be automated for cleaning systems?
Yes! Our spray systems can be fully automated, allowing for:
   • Consistent spray application.
   • Reduced labor costs and faster cleaning cycles.
   • Enhanced cleaning effectiveness, ensuring uniform coverage and optimized cleaning.
How do I maintain the spray nozzles?
Maintenance is key to ensuring optimal performance:
   • Regularly clean nozzles to prevent clogging, especially when dealing with viscous liquids.
   • Inspect for wear and tear – Regular checks ensure that nozzles are operating at full efficiency.
   • Replace worn components promptly to maintain consistent performance and prevent downtime.
How do spray nozzles help in reducing water and chemical waste?
Our spray nozzles are designed to ensure precise application of cleaning agents, minimizing the need for excess water or chemicals. With adjustable spray angles, flow rates, and droplet sizes, we ensure that the right amount of liquid is used, optimizing cleaning while reducing resource waste.
How do I determine the right spray nozzle for my cleaning needs?
Choosing the right nozzle depends on factors like:
   1. Residue Type – Light, medium, or tough residue will require different flow rates and spray pressures.
   2. Surface Area – The larger the area to clean, the wider the spray pattern required.
   3. Cleaning Time – Faster cycles may require higher flow rates and more precise nozzles for quick coverage.
