Rain Gun with 80 meter diameter radius

Rain Gun Sprinkler for Large Area Irrigation & Dust Suppression

A rain gun sprinkler is an efficient solution for large-area irrigation and dust suppression, delivering wide water coverage with controlled spray distribution. Designed for agriculture, landscaping, and industrial applications, this rain gun system provides uniform water application while operating reliably under outdoor conditions.

With adjustable rotation, high throw capability, and durable construction, the rain gun sprinkler is ideal for farms, plantations, turf irrigation, and construction dust control where conventional sprinklers are insufficient.

Applications of Rain Gun Sprinkler System

Our rain gun irrigation system is suitable for multiple large-scale applications:
Suitable for crops requiring over-head irrigation like coffee, tea, sugarcane & fodder crops.
Irrigation of turf /landscapes, horticulture and pasture fields
Dust suppression in construction, mining etc
Designed for both full-field and field-edge irrigation.

Technical Specifications – Rain Gun Irrigation System

ParameterSpecification
Inlet Connection2" Female Thread (BSP / NPT options)
Maximum CoverageUp to 80 m diameter (application dependent)
Rotation ArcFull circle / Part circle up to 270°
Recommended Operating Pressure2.0 – 5.0 kg/cm² (30 – 70 psi)
Recommended SpacingUp to 36 m for improved distribution uniformity
Suitable UsesIrrigation & Dust Suppression

Advantages of Using a Rain Gun Sprinkler

Uniquely designed for uniform distribution of water and engineered to offer constant speed in both forward & backward directions.
Adjustable unit for full circle & part circle operation
Jet breaker screw to change the water jet throw from heavy to fine droplets spray
High-grade aluminium Stream straighter ensures maximum irrigation area coverage
Manufactured for High Durability using Engineered Plastics
Stainless Steel pivot pin, springs and bolt Heavy-duty brass nut, tube & diffusor screw
Plastic arm spool for smooth deflection of sprinkler

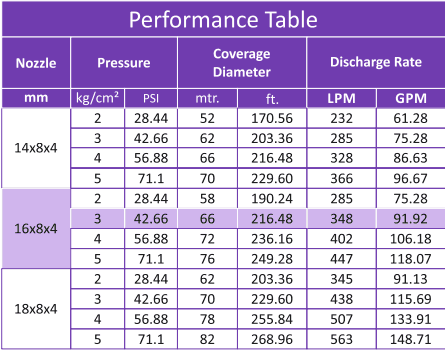

Permance table

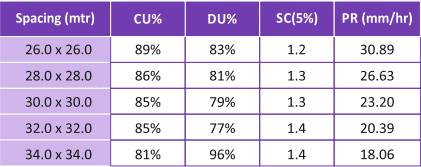

calculate table

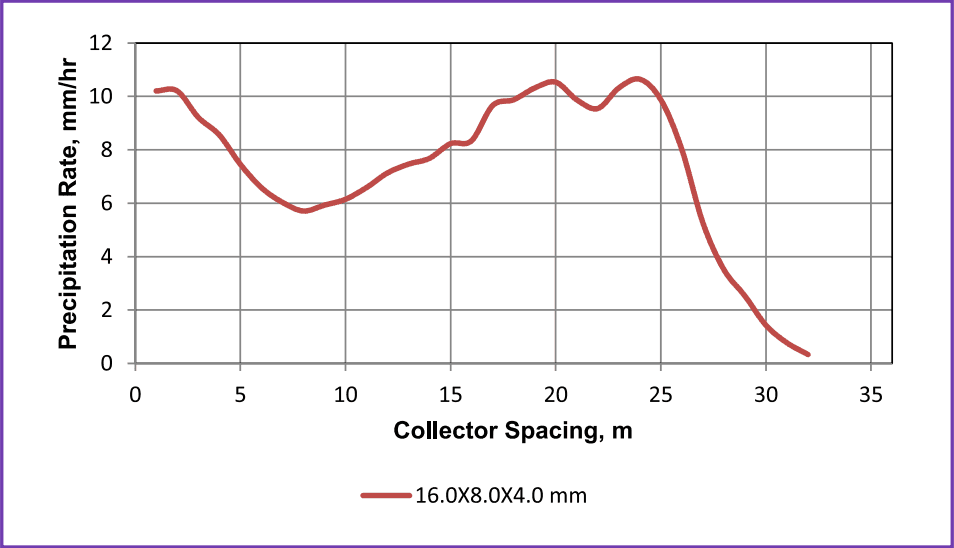

Precipitation Rate

Why Choose Our Rain Gun Sprinkler?

Wide-area water coverage suitable for large farms and open fields

Designed to deliver uniform irrigation with stable rotation

Adjustable spray pattern for full-circle and part-circle irrigation

Built for long service life in demanding outdoor environments

Suitable for high-flow irrigation and dust suppression applications

FAQs about Rain Gun with 80 diameter radius

Can this rain gun be used for dust suppression?

Yes. The rain gun sprinkler is suitable for dust suppression in construction and mining areas, where wide-area water spraying is required.

What pressure is required for optimal performance?

The recommended operating pressure range is 2.0 to 5.0 kg/cm² (30 to 70 psi).

Is it suitable for field-edge irrigation?

Yes. The adjustable part-circle mechanism allows effective field-edge and boundary irrigation.

Which crops are suitable for rain gun irrigation?

It is suitable for crops such as sugarcane, coffee, tea, fodder crops, and other plantation or open-field crops.
