SPRAY NOZZLES FOR INJECTION OF FLUIDS

Q: What industries use fluid injection spray nozzles?

Power plants & gas treatment facilities, chemical processing industries, pharmaceutical & food manufacturing, automotive and lubrication systems.

Spray nozzles are widely used for injecting additives into gas flows or liquid streams, ensuring efficient mixing, controlled dispersion, and rapid absorption. In industrial applications, accurate spray injection helps in gas treatment, chemical reactions, cooling processes, and lubrication systems. Our high-performance spray nozzles ensure optimal droplet size, uniform spray distribution, and precise flow control, maximizing efficiency and reducing waste.

How Fluid Spraying Works?

Spray nozzles convert liquid into fine droplets, ensuring better surface coverage, rapid mixing, and efficient heat transfer. Choosing the right nozzle is crucial for accurate fluid injection and improved process efficiency.

Enhanced Heat Transfer

Sprays increase the surface area of the fluid, ensuring faster cooling and heating.

Faster Mixing & Reaction

Fine atomized sprays ensure quick dispersion and uniform blending.

Controlled Fluid Application

Reduces waste, overspray, and excessive fluid consumption.

Clog-Resistant Designs

Engineered to handle high-viscosity and thick fluids without clogging.

Key Considerations for Fluid Injection Spray Nozzles

Spraying of Thick Liquids

🔹Challenge: High-viscosity fluids like lubricants and heavy chemicals can cause clogging and uneven atomization.
🔹Solution: Use external mix air atomizing nozzles, where air mixes with the fluid after exiting the nozzle, preventing blockages and ensuring fine mist formation.

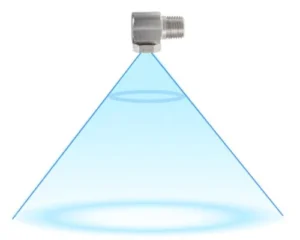

Spray Pattern & Flow Rate for Injection Applications

🔹Uniform Spray Distribution – Ensures faster mixing and reaction.
🔹Fine Droplet Atomization – Enhances contact efficiency in chemical or gas streams.
🔹Adjustable Spray Angles – Helps target specific areas for precise fluid injection.

Low-Volume Spray Injection

🔹Challenge: Injecting small quantities of additives while ensuring complete mixing.
🔹Solution:
✔ Air atomizing nozzles ensure fine mist at low flow rates.
✔ High-pressure nozzles provide better atomization without excess fluid usage.

Spraying into Gas vs. Liquid Streams

🔹Gas Injection: Requires ultra-fine mist to increase surface contact and reaction speed.
🔹Liquid Injection: Needs full cone or hydraulic atomizing nozzles to enhance dispersion in moving liquids.

Harsh Industrial Conditions (Heat & Corrosion)

🔹Challenge: Spray nozzles often operate in high temperatures, aggressive chemical environments, or corrosive conditions.
🔹Solution:
✔ Manufactured from stainless steel, ceramic, and corrosion-resistant alloys.
✔ High-temperature resistant designs for extreme industrial conditions.

Applications of Fluid Injection Spray Nozzles

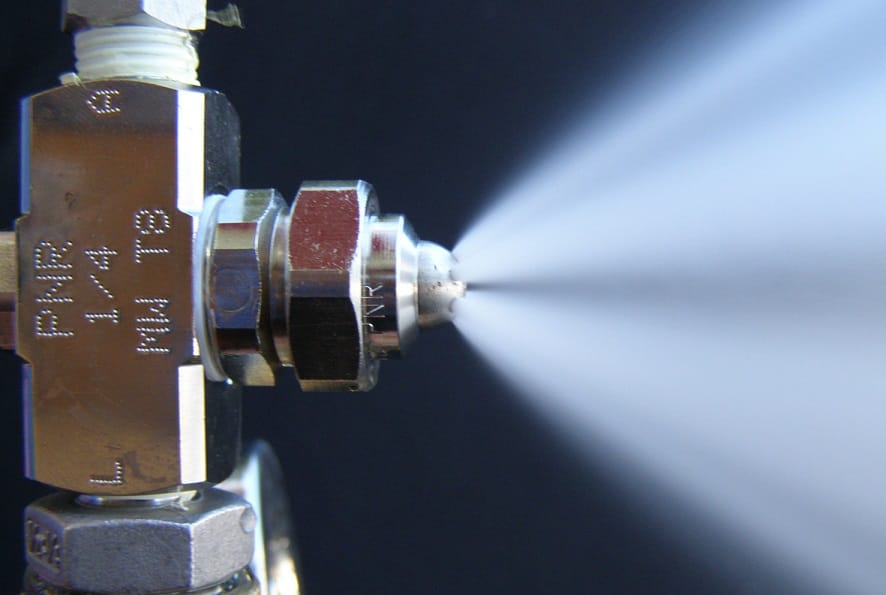

Gas Cooling & Conditioning

Application: Controlling gas temperatures in industrial exhaust systems by injecting cooling fluids.
Industries Served: Power plants, steel manufacturing, cement plants, and incinerators.
Nozzle Type: Air atomizing nozzles for fine mist formation and rapid evaporation.

✔ Reduces high-temperature gas emissions.
✔ Prevents duct corrosion and equipment overheating.
✔ Improves flue gas scrubbing efficiency.

full cone spray nozzle india mumbai gurgoan

Chemical Injection in Industrial Processes

Application: Precise injection of acids, alkalis, and chemical reagents into liquid or gas streams.
Industries Served: Wastewater treatment, chemical manufacturing, food processing, and refineries.
Nozzle Type: Hollow cone and full cone nozzles for uniform chemical dispersion.

✔ Ensures effective neutralization of hazardous substances.
✔ Reduces waste and chemical overuse.
✔ Enhances reaction efficiency in mixing chambers.

SS eductor manufacturer supplier chennai india

Fuel Injection for Combustion Systems

Application: Atomization of liquid fuels (diesel, biofuels, heavy oils, kerosene) for combustion.
Industries Served: Boilers, turbines, industrial furnaces, and diesel engines.
Nozzle Type: Hydraulic atomizing nozzles for fine fuel spray and complete combustion.

✔ Improves fuel efficiency and reduces emissions.
✔ Ensures consistent and stable combustion.
✔ Reduces fuel consumption and operational costs.

Lubrication & Cooling in Machinery

Application: Controlled spraying of oils, coolants, and lubricants to reduce friction and heat.
Industries Served: Metalworking, CNC machining, automotive production, and textile industries.
Nozzle Type: External mix air atomizing nozzles for viscous fluids and fine mist spraying.

✔ Prevents machine wear and overheating.
✔ Optimizes coolant flow for enhanced productivity.
✔ Reduces waste and ensures even coverage.

Process Fluid Mixing & Reactor Feed Systems

Application: Uniform dispersion of catalysts, solvents, or additives in liquid streams.
Industries Served: Pharmaceuticals, petrochemicals, and food & beverage production.
Nozzle Type: Full cone nozzles for even mixing and improved chemical reaction rates.

✔ Enhances reaction efficiency and product quality.
✔ Prevents localized concentration variations.
✔ Supports continuous and batch processing systems.

Dust Suppression & Moisture Control

Application: Spraying fine mist to suppress dust and airborne particles in mining, cement, and bulk material handling.
Industries Served: Coal plants, mining sites, construction sites, and cement manufacturing.
Nozzle Type: Spiral full cone nozzles for wide-area dust control.

✔ Controls respirable dust and enhances air quality.
✔ Reduces water consumption with precision misting.
✔ Ensures safety compliance in hazardous environments.

Odor Control & Air Purification

Application: Neutralization of unpleasant odors in industrial facilities using chemical misting systems.
Industries Served: Wastewater treatment plants, landfills, and food processing plants.
Nozzle Type: Fine misting nozzles for effective deodorization and air treatment.

✔ Eliminates odor-causing compounds like H₂S, ammonia, and VOCs.
✔ Provides continuous air purification and improved work environments.
✔ Works with bio-degradable and chemical-based deodorizing agents.

Fire Suppression Systems

Application: High-pressure water misting for fire control and prevention.
Industries Served: Warehouses, commercial buildings, oil & gas facilities.
Nozzle Type: Water mist nozzles for rapid cooling and fire suppression.

✔ Quickly reduces fire intensity and prevents spread.
✔ Uses minimal water while maximizing coverage.
✔ Works in high-risk areas like transformer stations, tunnels, and server rooms.

Tank Cleaning & Sanitization

Application: Automated cleaning and sanitation of storage tanks, food processing equipment, and chemical vats.
Industries Served: Breweries, pharmaceuticals, dairy plants, and chemical storage.
Nozzle Type: Rotating tank cleaning nozzles for 360° spray coverage.

✔ Removes stubborn residues and microbial contaminants.
✔ Reduces water and chemical usage with high-impact cleaning.
✔ Ensures compliance with hygiene and safety standards.

Common Issues in Fluid Injection & Their Solutions

Uneven Spray Distribution

• Cause: Incorrect nozzle selection or improper flow rate.
• Solution: Use precision-engineered nozzles with optimized spray patterns.

Clogging & Maintenance Issues

• Cause: Mineral buildup or high-viscosity fluids.
• Solution: Use self-cleaning, clog-resistant nozzles.

Poor Atomization & Large Droplet Sizes

• Cause: Low pressure or incorrect nozzle design.
• Solution: Use air atomizing or hydraulic nozzles for fine mist formation.

High Fluid Consumption

• Cause: Inefficient spray patterns or excess flow rates.
• Solution: Implement precision flow control and adjustable nozzles.

Corrosion & Wear in Harsh Conditions

• Cause: Exposure to high temperatures, chemicals, or abrasive fluids.
• Solution: Use stainless steel, ceramic, or corrosion-resistant materials.

Types of Spray Nozzles for Fluid Injection

Air Atomizing Nozzles – Ultra-Fine Mist for Maximum Efficiency

Uses compressed air and liquid for precise atomization.
Creates fine mist sprays for gas cooling, humidification, and chemical injection.
Ideal for flue gas treatment, pharmaceutical applications, and coating processes.

Hydraulic Atomizing Nozzles – High-Pressure Injection

Uses high-pressure liquid flow to break fluids into fine droplets.
Provides accurate dosing and deep penetration in gas flows.
Suitable for fuel injection, lubrication, and chemical dispersion.

Full Cone Nozzles – Even Coverage for Large-Scale Injection

Produces uniform droplet distribution with wide spray angles.
Ideal for wet scrubbing, chemical injection, and cooling applications.
Ensures consistent and efficient fluid delivery.

Cooling Tower Nozzle – Fine Mist for Precision Injection

Creates fine droplets for rapid evaporation and absorption.
Used in humidification, gas scrubbing, and odor control systems.
Reduces chemical waste by ensuring optimal fluid contact.

Spiral Nozzles – For Harsh Industrial Environments

Delivers high-impact spray with a large range of droplet sizes.
Ideal for high-temperature gas cooling, dust suppression, and wet scrubbing.
Designed for abrasive and corrosive industrial applications.

Why Choose Our Spray Nozzles for Fluid Injection?

FAQ

What is fluid spraying, and why is it important?

Fluid spraying ensures precise distribution, rapid mixing, and efficient chemical reactions in industrial processes like gas cooling, chemical injection, and fuel atomization.

How do I choose the right nozzle for fluid injection?

✔ Consider fluid viscosity, operating pressure, and spray pattern requirements.
✔ Use air atomizing nozzles for fine mist and hydraulic nozzles for high-pressure injection.

What industries use fluid injection spray nozzles?

✔ Power plants & gas treatment facilities
✔ Chemical processing industries
✔ Pharmaceutical & food manufacturing
✔ Automotive and lubrication systems
