Windbreak Panels for Electrical Substations Protect Equipment & Improve Reliability
Electrical substations are critical components of the power distribution network. However, they are highly vulnerable to dust, sandstorms, and high-velocity wind gusts that can lead to insulation failures, flashovers, and operational disruptions. Installing windbreak panels for electrical substations is a proven solution to reduce wind load, minimize airborne contaminants, and safeguard critical electrical infrastructure.
What Are Windbreak Panels?
Windbreak panels, also known as wind fences or wind barriers, are vertical structures designed to reduce wind velocity and block airborne debris from entering sensitive areas. For substations, they are strategically installed around the perimeter to shield transformers, switchgear, circuit breakers, and insulators from wind-borne hazards.

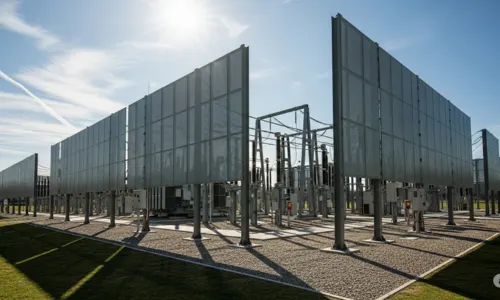

Importance of Wind Fencing for Substations
- Prevents dust accumulation on high-voltage insulators.
- Reduces wind-induced flashover risk.
- Protects outdoor equipment from windblown debris and corrosive particles.
- Minimizes fire hazard from dry vegetation and dust exposure.
- Stabilizes micro-climate within the substation yard
Key Features of Our Windbreak Panels
- Custom height options (3m to 10m) based on substation layout
- 30–50% porosity mesh for optimal wind reduction without turbulence
- Hot-dip galvanized & powder-coated steel for long life
- UV-resistant HDPE mesh or perforated metal panels
- Modular design for easy installation and site adaptation
- Compliant with IS, IEC, and utility safety norms
Applications of Windbreak Panels in Power Infrastructure
- Transmission and distribution substations (132 kV, 220 kV, 400 kV, 765 kV).
- Gas-insulated and air-insulated substations (GIS and AIS).
- Renewable energy substations (solar/wind power evacuation points).
- Outdoor switchyards and transformer bays.
- Substations located in desert, coastal, and high-wind zones.
Why Choose Us for Substation Windbreak Panels?
- Wind engineering & CFD analysis for wind fence optimization
- Site-specific design and turnkey installation
- Robust structural foundations and safety anchoring
- Customized porosity and mesh design for dust-prone regions
- Pan India delivery and installation services for power utilities
Frequently Asked Questions (FAQs)
How do windbreak panels help in substations?
They reduce wind velocity, prevent dust buildup on insulators, and protect equipment from environmental damage, improving substation uptime and safety.
What material is used in windbreak panels for substations?
Typically galvanized steel posts with UV-resistant HDPE mesh or perforated steel panels offering 30–50% porosity.
Are these panels resistant to fire and UV radiation?
Yes, all materials are tested for UV stability and fire retardancy, ensuring long-term outdoor performance.
Can these be installed in existing substations?
Absolutely. Our modular design allows for retrofitting in existing substations without disturbing operational components.
Do you provide structural wind load analysis?
Yes, we conduct wind load and structural safety analysis based on site-specific conditions and regulatory codes.
