Spray System for Pelletizing Iron Ore

In iron ore pelletizing plants, spray systems play a vital role in enhancing pellet quality, minimizing dust generation, and improving process efficiency. These systems are strategically used during various stages like mixing, balling, induration, and cooling, ensuring optimal moisture content, binder activation, and temperature control.

At Synergy Spray Systems, we provide advanced spray solutions tailored for each stage of iron ore pelletizing—right from mixing to induration. Our systems are built to handle abrasive materials and extreme heat, ensuring effective moisture regulation, binder application, and dust control. With precision nozzle configurations and smart automation, our spray systems improve pellet uniformity, reduce water and binder waste, and help maintain air quality in compliance with environmental norms.
System ElementSpecification
Spray PatternsAir atomizing, hollow cone, flat fan, full cone
Construction MaterialsSS316L, SS310 for high-temp zones; Ceramic for abrasive resistance
Pressure CapabilityLow to high pressure (2 – 70 bar)
Spray FinenessAdjustable droplet sizes between 10 and 100 microns
Installation TypesModular assemblies – flange, thread, or quick-clamp mount
Automation SupportFully compatible with PLC/SCADA; includes valves and sensors for flow control
Process Zones CoveredMixer units, balling discs/drums, cooling beds, transfer chutes, furnaces

Applications of Spray System in Iron Ore Pelletization

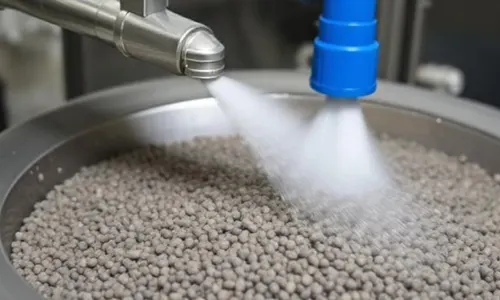

Binder and Moisture Addition during Mixing

Binder and Moisture Addition during Mixing

Delivers water and binders (like bentonite) uniformly over iron ore fines.
Promotes better particle agglomeration and pellet nucleation.

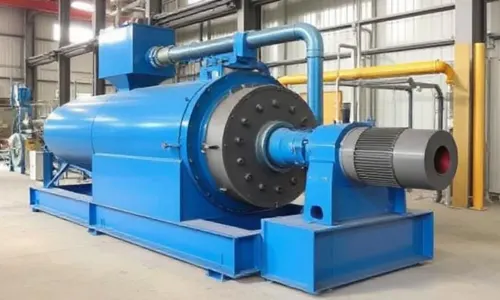

Balling Disc or Drum Conditioning

Balling Disc or Drum Conditioning

Helps control moisture content during pellet growth.
Prevents pellet breakage and promotes uniform size distribution.

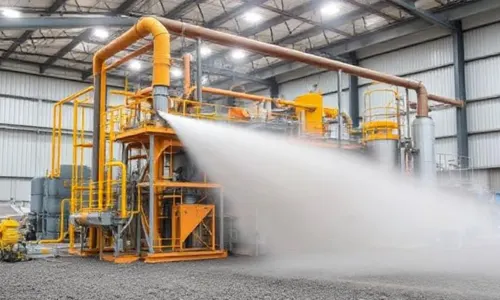

Dust Suppression in Material Handling

Dust Suppression in Material Handling

Installed at transfer points and stockpile conveyors.
Reduces fugitive dust emissions to meet environmental compliance.

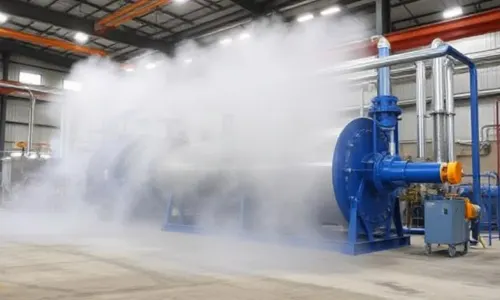

Cooling Section Fogging

Cooling Section Fogging

Fine mist helps lower pellet surface temperature during air cooling.
Reduces thermal cracks and improves pellet integrity.

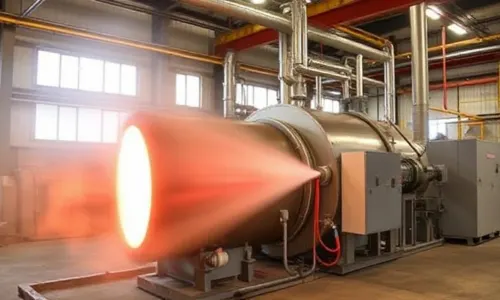

Induration Furnace Humidity Control

Induration Furnace Humidity Control

Optional fine spray before or after firing zone.
Helps manage temperature gradients and improve sintering efficiency.

Key Features of the Spray System

High-Pressure or Low-Pressure Nozzles depending on process needs.
Automated flow control for precise moisture addition.
Nozzle configurations: Full cone, fine mist, air atomizing nozzles.
Material compatibility: Stainless steel or ceramic for abrasion resistance.
Integrated with PLC/SCADA for remote monitoring and control.

Benefits

Enhances pellet uniformity and mechanical strength.
Improves binder performance and reduces overuse.
Lowers emissions and ensures regulatory compliance.
Reduces downtime and maintenance due to improved process control.
Customizable for retrofit or new pelletizing plants.
Why Choose Our Spray Systems

Why Choose Our Spray Systems?

At Synergy Spray Systems, we offer custom-engineered spray solutions tailored for the pelletizing industry. With experience in high-temperature, abrasive environments, our systems deliver reliable and consistent performance with minimal maintenance.
